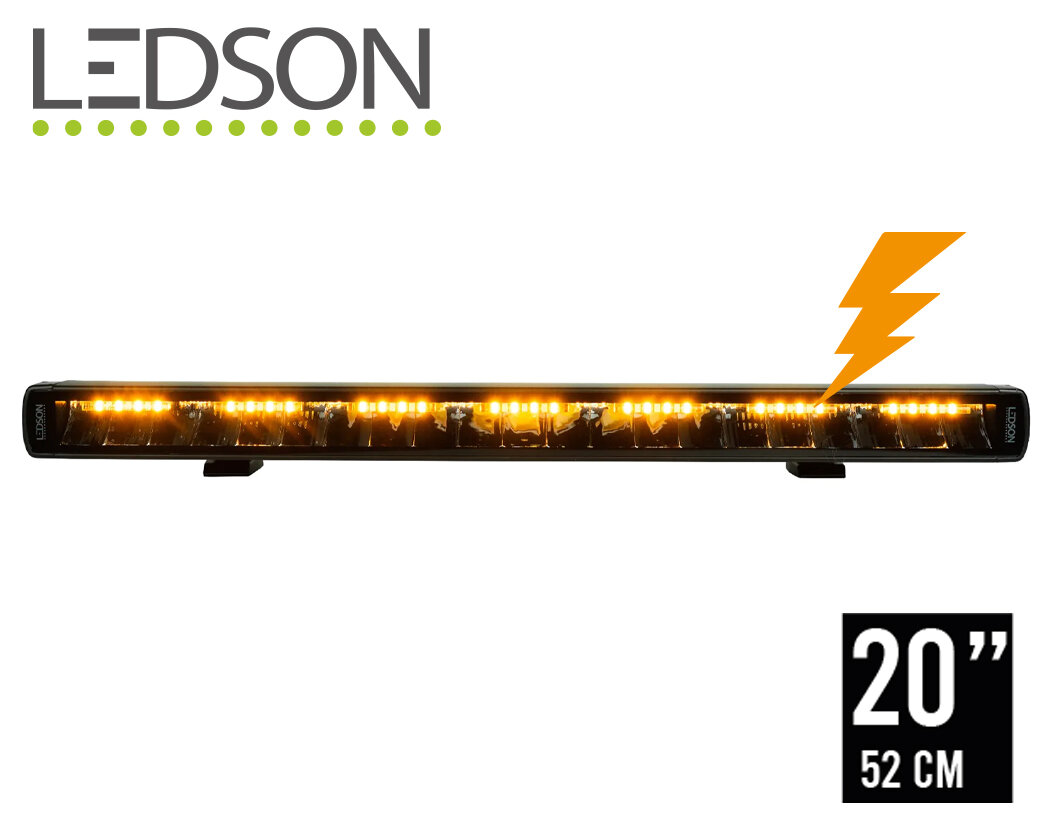

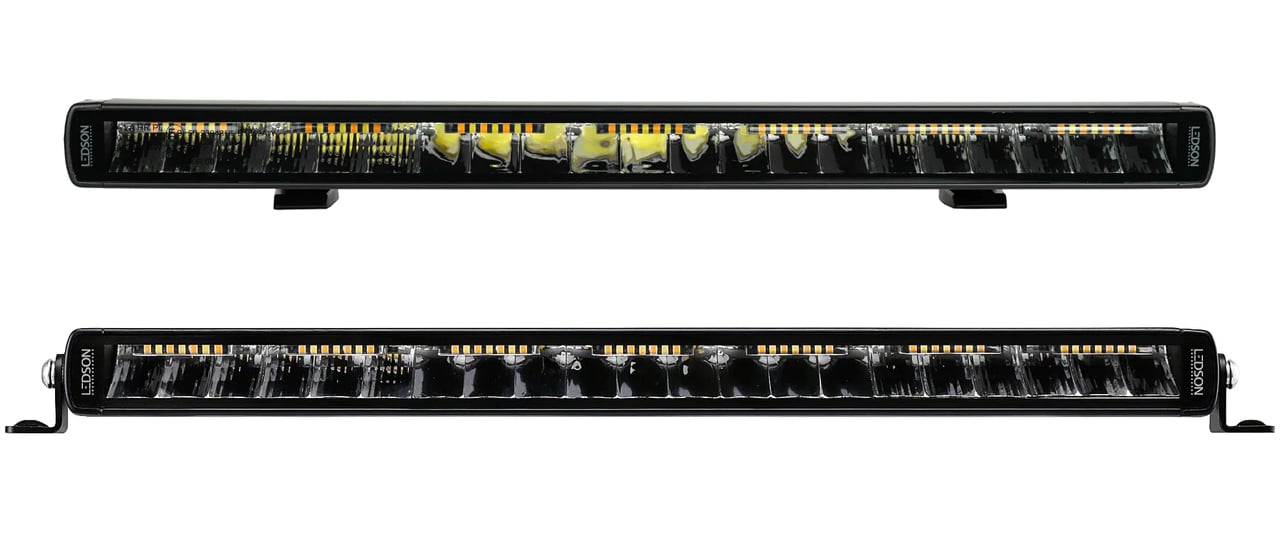

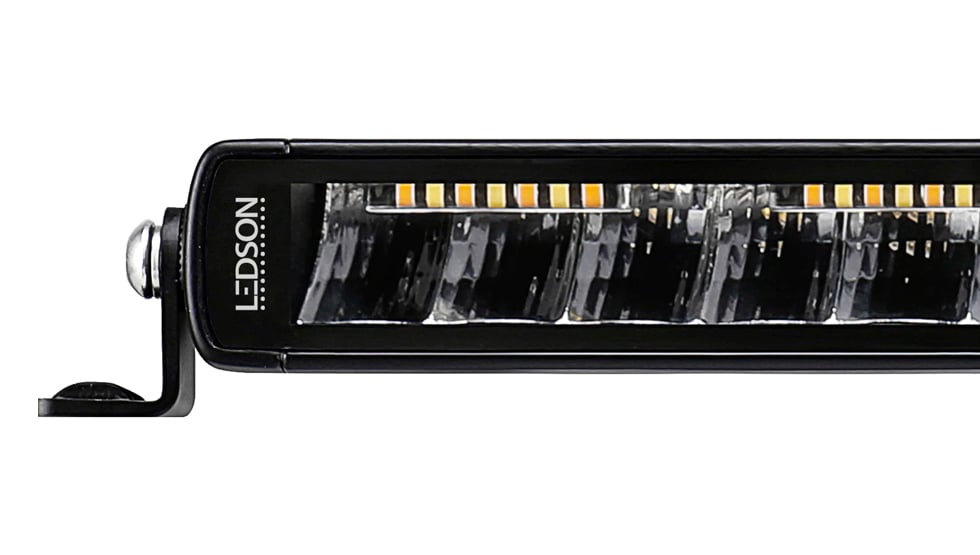

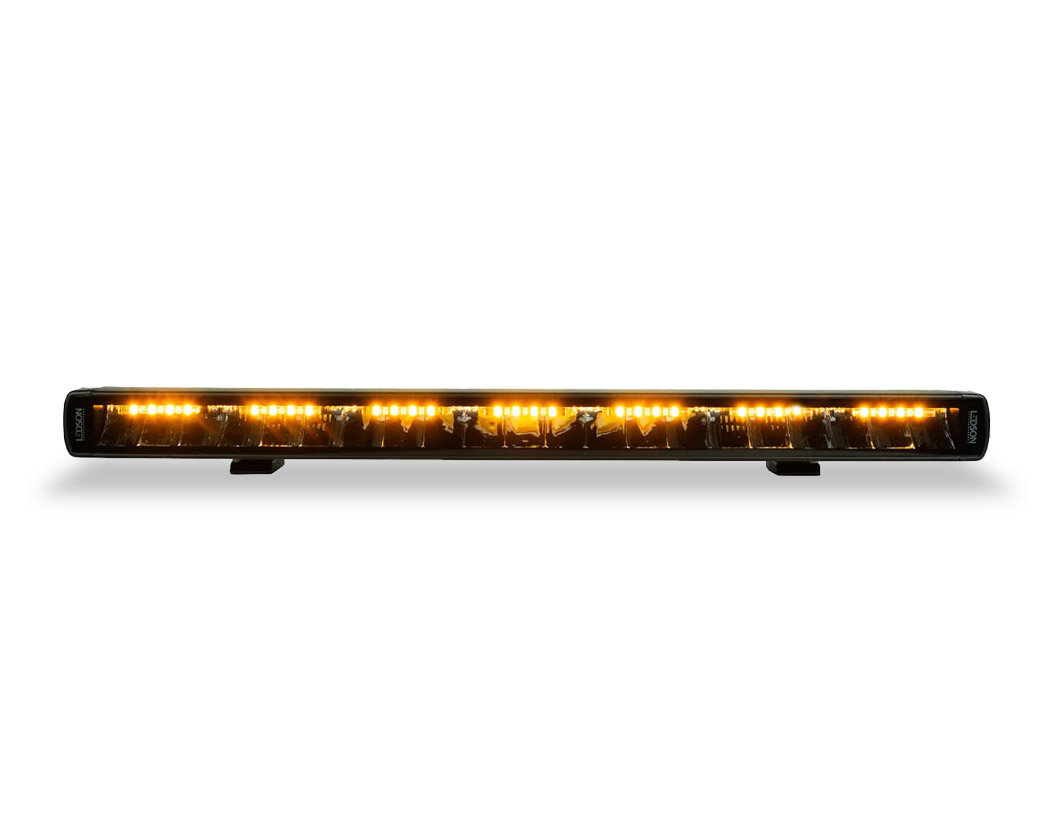

Ledson LED Bar Phoenix+ 20" Multifunctional With Orange Strobe Function And Xenon White Or Orange Position Lights

The Phoenix+ 20" LED bar from Ledson is a multifunctional spotlight and warning light in one. With this LED bar, you no longer need to install multiple lights for different functions. This saves you space and makes installation easier. The LED bar is available in three sizes: 20", 32", and 40", so you always have a suitable option. All lengths are E-approved as additional lighting according to ECE R112 and have an approved strobe function (ECE R65). You can choose xenon white or yellow/orange position lights, which are optionally connectable.

Features:

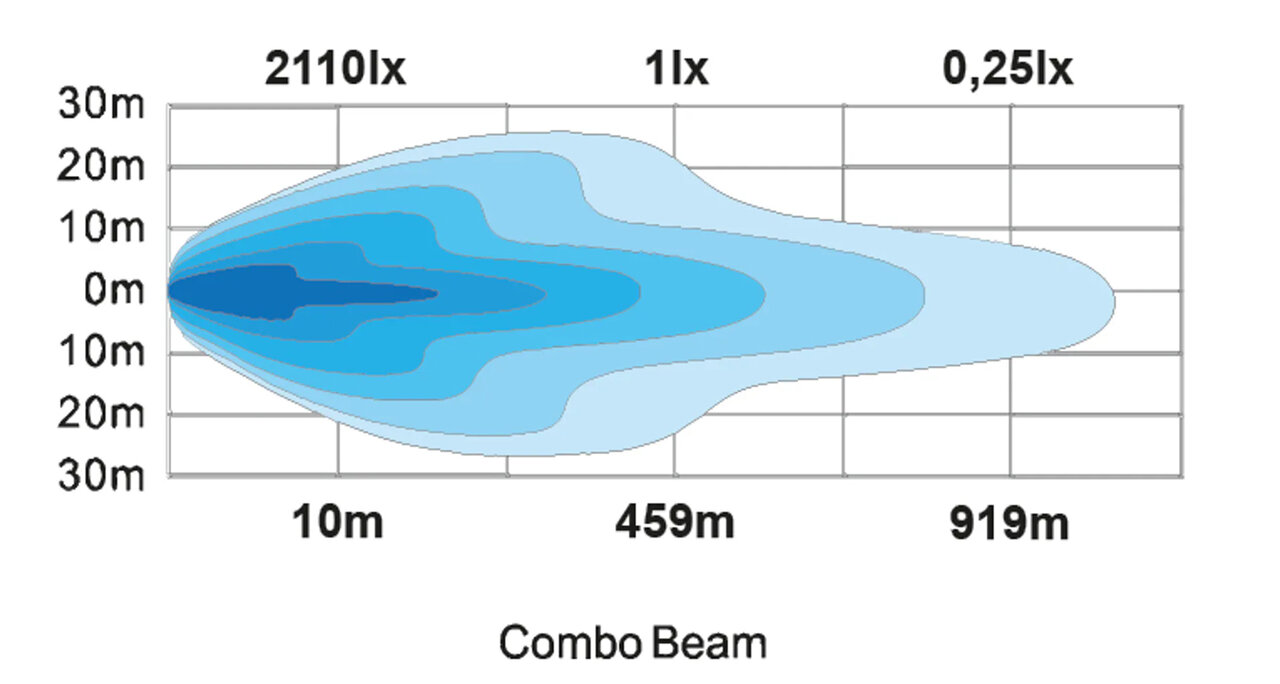

• Combo Beam light pattern (wide and elongated)
• E-marked ECE R112 (ref. 50)
• ECE R65 / R7 / R10 (EMC classified)
• Range: 459 m (1 lux)
• Lumen: 8820 lm (theoretical), 3586 lm (actual)
• Color temperature: 5700K (cool white)
• Strobe: Orange (ECE R65)
• Position light: Xenon white or yellow/orange

Technical data:

• 105 W (21 x Osram CSHP LED)
• IP68/69K: resistant to hot water under pressure
• Aluminum housing and polycarbonate lens
• 4-pin DT connector (included)
• Voltage: 10-30V

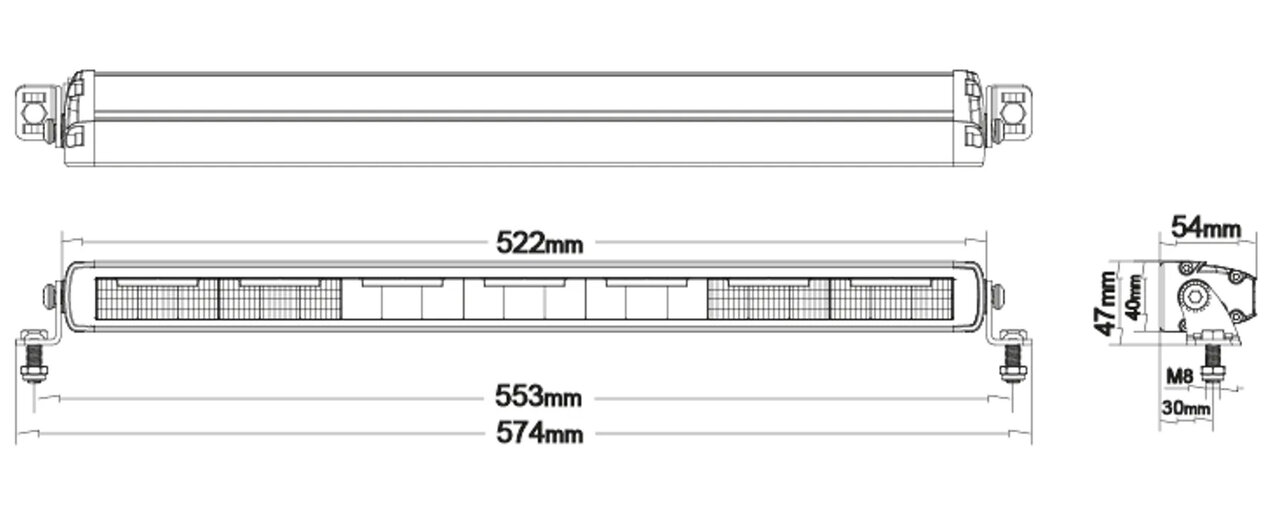

Dimensions & weight (excluding brackets):

• Width: 522 mm
• Height: 40 mm
• Depth: 54 mm (excluding bracket)
• Weight: 1300 grams

Cable colors:

• Green: Flash function
• Gray: White position light
• Yellow: Orange position light

Special notes:

Note that the DT connector must not be cut, as this increases the risk of moisture damage and voids the warranty. The male DT connector is included with the product.

With the Phoenix+ 20" LED bar, you improve visibility and safety on the road, especially in bad weather conditions. The simple installation makes it a practical choice for truck styling and functional lighting. Discover the benefits yourself and complete your truck with this versatile LED bar. Order now and experience the difference!
